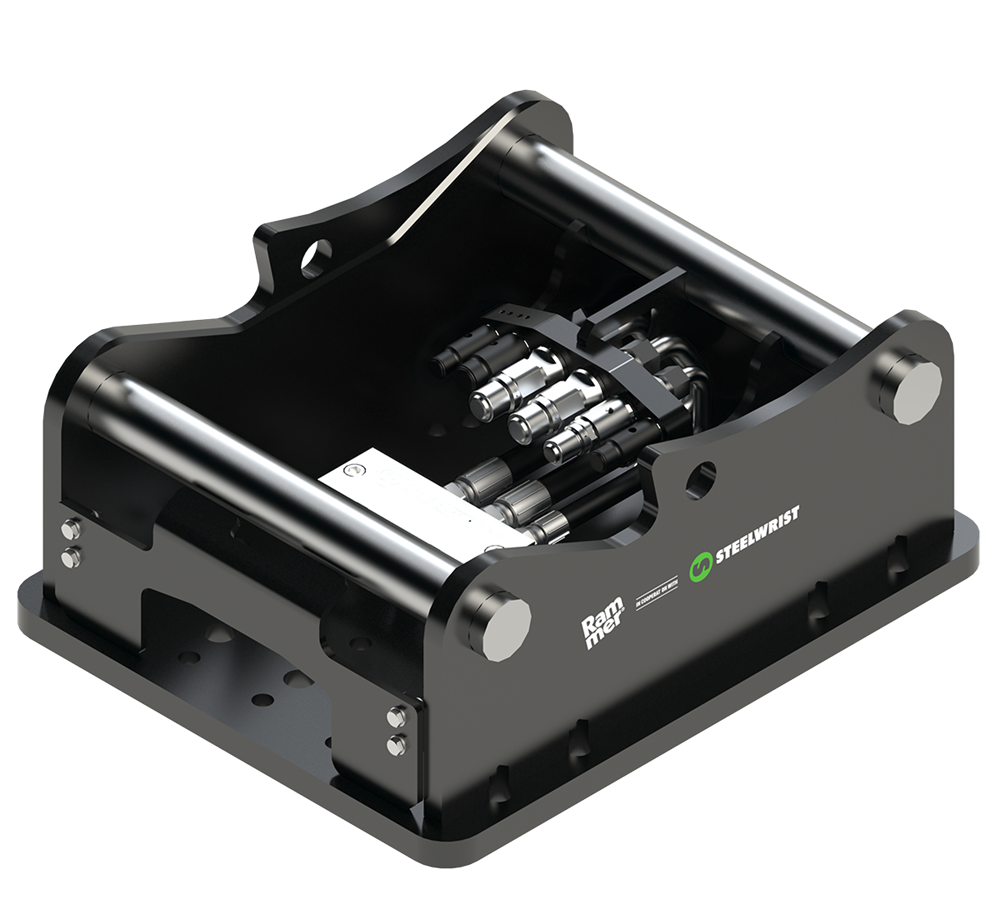

SQ80

SQ80 is suitable for Rammer Performance line breakers R25P, R35P and R45P. This means they can work with carriers from 25 to 43 tons.

Main benefits of Rammer adapter plates:
− Safety first: full-automatic interface yielding less exposure of operators to risks; improved serviceability
− Design for efficiency & productivity: more productive by using more tools with fewer excavators
− Premium components: higher uptime with reduced oil consumption & fuel burnt
− Rammer-ready: plug-and-play assembly

Applications

Primary demolition

Demolition of standing buildings and structures.
Secondary demolition

Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
Recycling

Re-using parts or material which has been extracted from existing buildings or structures.

Recyclng of products: Re-use of material or parts as such

Recycling of material: Re-use of material for other purposes
Primary breaking

Hammer fitted to an excavator working directly in a bench to breaks away rock which can then be removed by truck. This is most commonly used where blasting is not allowed.
Secondary breaking

When blasted rock is too big for the feeder or crusher, secondary breaking is needed to get the boulders down to size. The type of rock dictates the effectiveness of the process, with brittle rock giving the best performance.
Rental

Rental includes most applications

Specification sheet Operator manuals

Specification

Weight	400 kg	882 lb
Carrier weight, range *1	25 - 43 t	56000 - 96320 lb
Dimensions (W x L x H)	730 x 900 x 400 mm	28.7 x 35.4 x 15.8 in
Connections	2 x 1” First circuit, 2 x ½” Secondary circuit, 2 x 3/4” Leak oil / split, water, air
Rammer breaker configuration	Pressure: 1 x 1” (pos 3), Tank: 1 x 1”, 1x ¾” (pos 4 & 5)
*1 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Friday, March 3, 2023)
