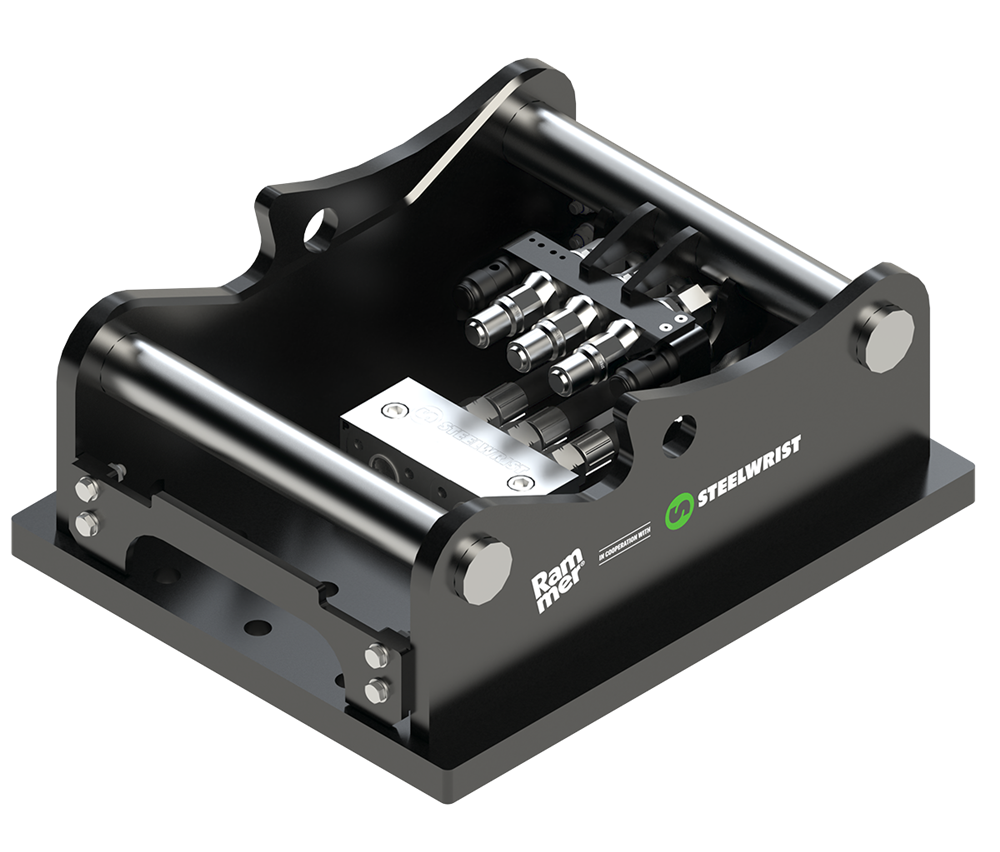

SQ65

SQ65 is suitable for Rammer Performance line breakers R16P and R18P. This means they can work with carriers from 14 to 22 tons.

Adapter plate SQ65 are specifically designed for the German, Austrian, and Swiss markets.

Main benefits of Rammer adapter plates:
− Safety first: full-automatic interface yielding less exposure of operators to risks; improved serviceability
− Design for efficiency & productivity: more productive by using more tools with fewer excavators
− Premium components: higher uptime with reduced oil consumption & fuel burnt
− Rammer-ready: plug-and-play assembly

Applications

Primary demolition

Demolition of standing buildings and structures.
Secondary demolition

Demolition of larger pieces on the ground (size reduction, separation and preliminary sorting tasks)
Recycling

Re-using parts or material which has been extracted from existing buildings or structures.

Recyclng of products: Re-use of material or parts as such

Recycling of material: Re-use of material for other purposes
Secondary breaking

When blasted rock is too big for the feeder or crusher, secondary breaking is needed to get the boulders down to size. The type of rock dictates the effectiveness of the process, with brittle rock giving the best performance.
Rental

Rental includes most applications

Specification sheet Operator manuals

Specification

Weight	204 kg	450 lb
Carrier weight, range *1	14 - 22 t	31360 - 49280 lb
Dimensions (W x L x H)	580 x 700 x 290 mm	22.8 x 27.6 x 11.4 in
Connections	2 x 3/4” First circuit, 2 x 1/2” Secondary circuit, 1 x 3/4” Drain line
Rammer breaker configuration	Pressure: 1x ¾” (pos 2), Tank: 2 x ¾” (pos 4 & 3)
*1 Check carrier allowed attachment weight from carrier manufacturer. Check application requirements.

Specifications are subject to change without notice (Friday, March 3, 2023)
