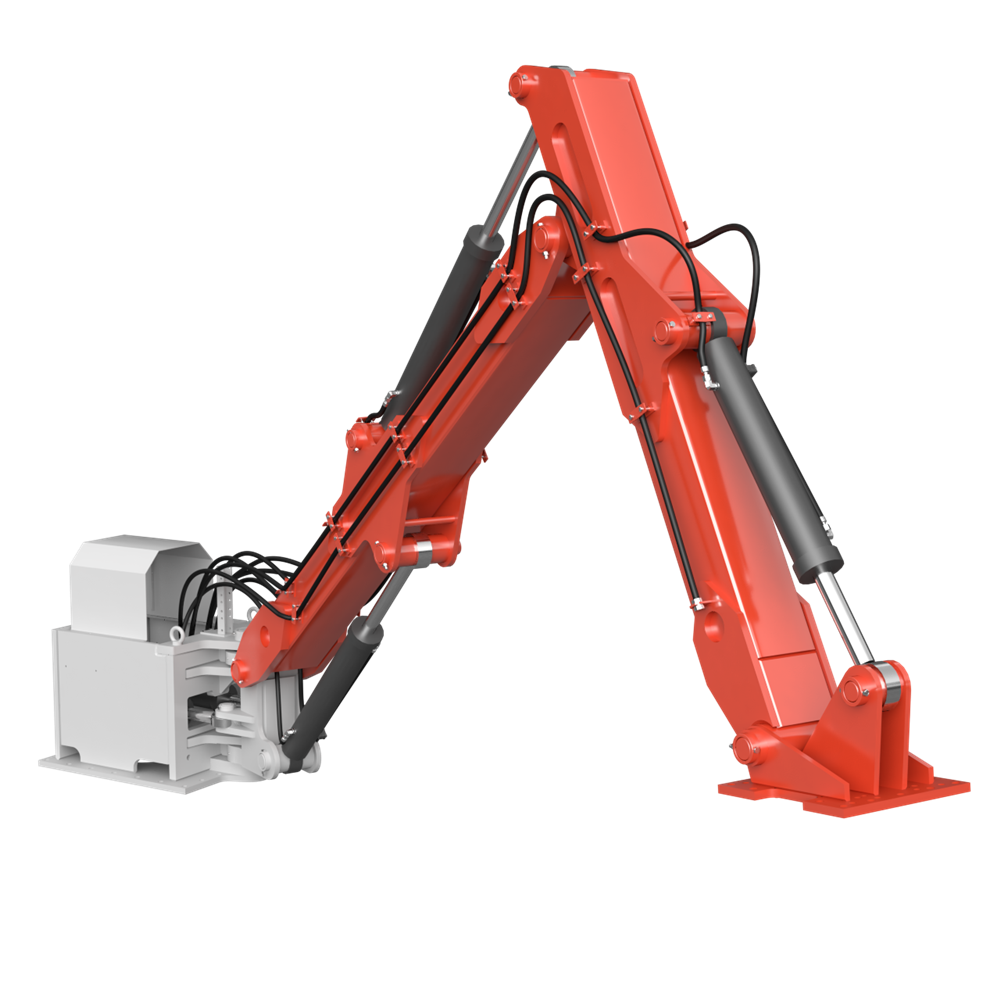

Light weight, multipurpose booms to be typically used in quarries, next to or on primary crushers or mobile mobile crushers to clear blockages and bridging. They can be operated directly by the valve levers or by using a Rammer radio control. Small series light weight booms are typically mounted on stationary crushing plants, and used in combination with a Rammer Small range breaker.
Heat treated pins have an increased service life and can be easily removed when replacing the bushings
Jaw crushers are typically used in many medium duty primary crushing applications. Blocakges and/or bridging can seriously effect the production of the entire plant.
An Brechanlagen um übergrosse Steine vor Ort sicher und effektiv zu zerkleinern.
| Transportgewicht | 2700 kg | 5940 lb |
| Eingangsleistung | 30 kW | 40 hp |
| Maximale Reichweite | 7,3 m | 23,9 ft |
| Nominale horizontale Reichweite (H) | 5,8 m | 19 ft |
| Nominale vertikale Reichweite (V) | 5,2 m | 17,1 ft |
| Schwenkwinkel | 170 ° | |
| Basismaße | 0.96 x 0.81 | 3.15 x 2.66 |
Die technischen Daten können ohne vorherige Ankündigung geändert werden. (Freitag, 4. Februar 2022)
